Obraz perforation
Other · Perforated & decorative
Obraz perforation turns an image into holes whose size varies across the sheet, so the panel reads as a picture from a distance and as perforated metal close up. Light through the holes makes the image; no ink, paint or laminate is used.
A physical swatch of this finish, on the metal you intend to use, ships with our compliments. Screens are not color-accurate — the sample is the specification.
About this finish
Obraz is the group's name for image perforation. The tonal values of a source picture are mapped to hole diameters, so each point on the sheet carries a hole sized to the brightness of the picture at that point. The eye merges the holes at a distance in the same way it reads a halftone print, except that here the dots are open holes in metal and the tone comes from whatever is behind the panel: sky, a backlit box, a wall. Depending on how the panel is lit, the larger holes read as the light or as the dark tones of the picture.
The page is explicit that nothing is printed, painted or laminated: the metal is the image. That has practical consequences. There is no surface layer to weather, so the picture lasts as long as the sheet; it can be seen from both faces, mirrored; and it changes with the light through the day.
The group perforates Obraz panels in stainless steel, aluminium and galvanised iron, in any grade, on mill, 2B, brush, vibration, mirror or bead-blast substrates, with PVD colour or an antique finish over the top. The pattern is generated from the client's image, so every panel set is a one-off.
At specification, agree three things from a sample: the viewing distance the image is designed for, the smallest hole the sheet thickness allows, and the margin left unperforated for fixing. Resolution is set by hole pitch; a picture designed to read across a plaza looks coarse at arm's length, and that is normal.
Where it is used
- Facade and boundary-wall panels carrying signage or figures
- Backlit feature walls and portrait panels
- Screens and partitions with landscape or foliage images
- Sunshades where the picture reads from the street and the shade works from inside
- Coastal exteriors in Jeddah and Dammam: stainless in 316, because the picture is made of cut hole edges
Variants

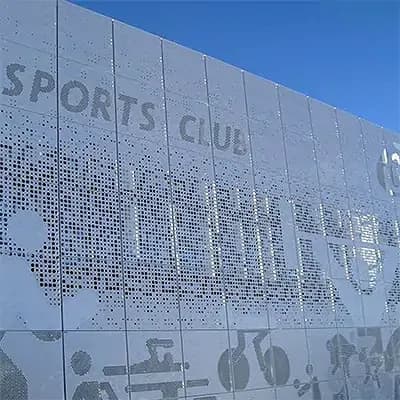

- Exterior wall with lettering and figuresUncaptioned project photograph
Portrait on white panelUncaptioned photograph
Backlit faceUncaptioned photograph
Fine mesh with faint imageUncaptioned photograph
Gradient bandsUncaptioned photograph
Foliage image on white panelsUncaptioned photograph
Folded sheet with landscape imageUncaptioned photograph
Compatibility
| Base materials | Stainless steel, Aluminium, Galvanised steel |
|---|---|
| Combines with | PVD, Mirror, Vibration, Bead blast |
| Seaside | —316 or duplex; 304 stains in Jeddah/Dammam |
Care & maintenance
Wash with water and mild detergent using a soft brush or cloth, rinse and dry. The image is carried by the holes, so keep them clear: dust and salt collect on the hole edges and on the back face, and on an external panel both faces need access. On a brushed substrate wipe with the grain between the holes.
- Do not use bleach or chloride-based cleaners on stainless steel.
- Do not use abrasive pads; they scratch the base finish and blur the hole edges that define the picture.
- PVD colour is a thin layer and is thinnest on the hole edges; keep to soft cloths there.
Products with this finish
No published products carry this finish yet — it is available on enquiry.
Frequently asked
- 01What is Obraz perforation?
- A perforation pattern generated from a picture. Hole size varies across the sheet to follow the tones of the image, so the perforated panel itself shows the picture. There is no printing, painting or laminating involved.
- 02What materials can Obraz perforation be made in?
- Stainless steel, aluminium and galvanised iron, in any grade according to the page, on mill, 2B, brushed, vibration, mirror or bead-blast surfaces, with PVD colour or an antique finish if wanted.
- 03Can Obraz perforation be used outdoors?
- The pictured work includes an external wall, and the panel has no surface layer to weather. In stainless, choose 316 for coastal sites because the picture is made of cut hole edges, which is where chloride attack begins on 304. The page does not state exposure limits, so confirm with Hidayath.
